- Welding helmets

Automatic welding helmet

Sku : 000001

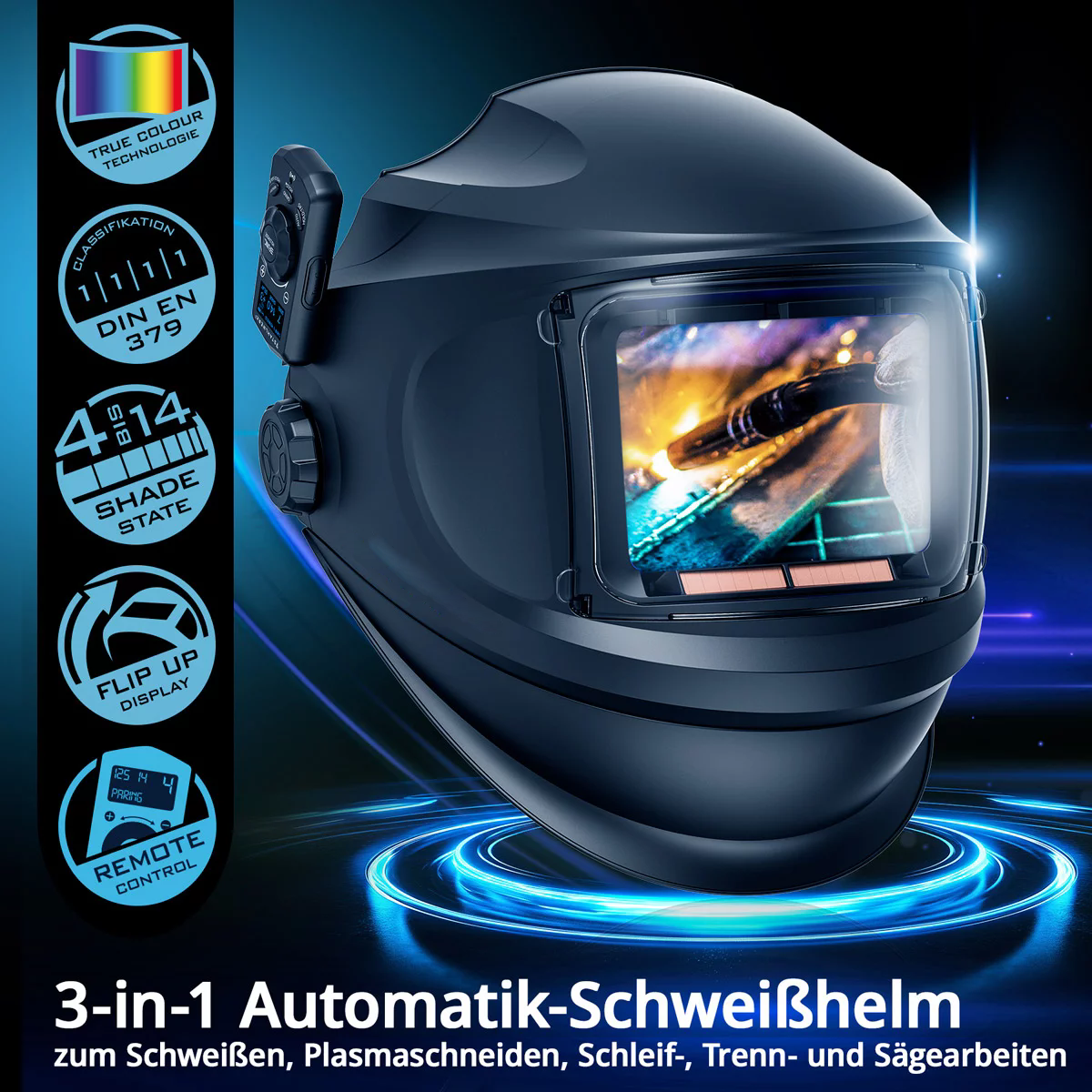

The 3-in-1 automatic welding helmet is ideal for professional welding, plasma cutting, grinding, cutting and sawing work thanks to its Bluetooth remote control, folding visor and optical classes 1/1/1/1. The welding helmet reliably protects the eyes and face from harmful flashes, heat, sparks and high-speed particles. Equipped with a latest-generation True Color filter cassette, the welding mask ensures optimum visibility and excellent true color reproduction. The advanced true-color technology offers significantly sharper vision and color accuracy than conventional true-color filter cartridges. Four independent sensors ensure automatic dimming of the welding shield as soon as the arc ignites. The fully automatic welding helmet also has an ambient light sensor which automatically adjusts the darkness levels to the arc.
Functions

The 3-in-1 automatic welding helmet is ideal for professional welding, plasma cutting, grinding, cutting and sawing work thanks to its Bluetooth remote control, folding visor and optical classes 1/1/1/1.
The welding helmet reliably protects the eyes and face from harmful flashes, heat, sparks and high-speed particles.

Equipped with a latest-generation True Color filter cassette, the welding mask ensures optimum visibility and excellent true color reproduction.

The advanced true-color technology offers significantly sharper vision and color accuracy than conventional true-color filter cartridges.

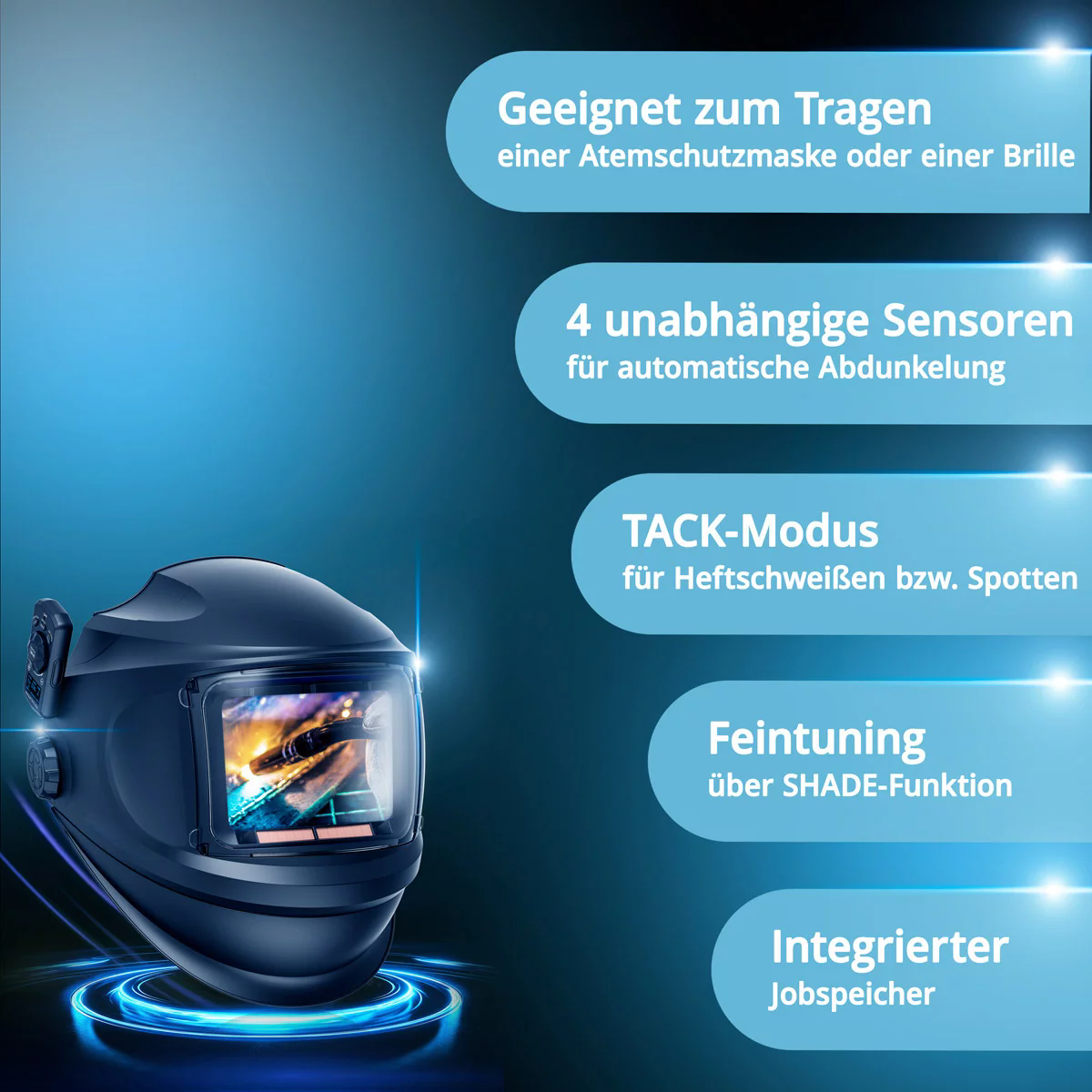

Four independent sensors ensure automatic dimming of the welding shield as soon as the arc ignites.

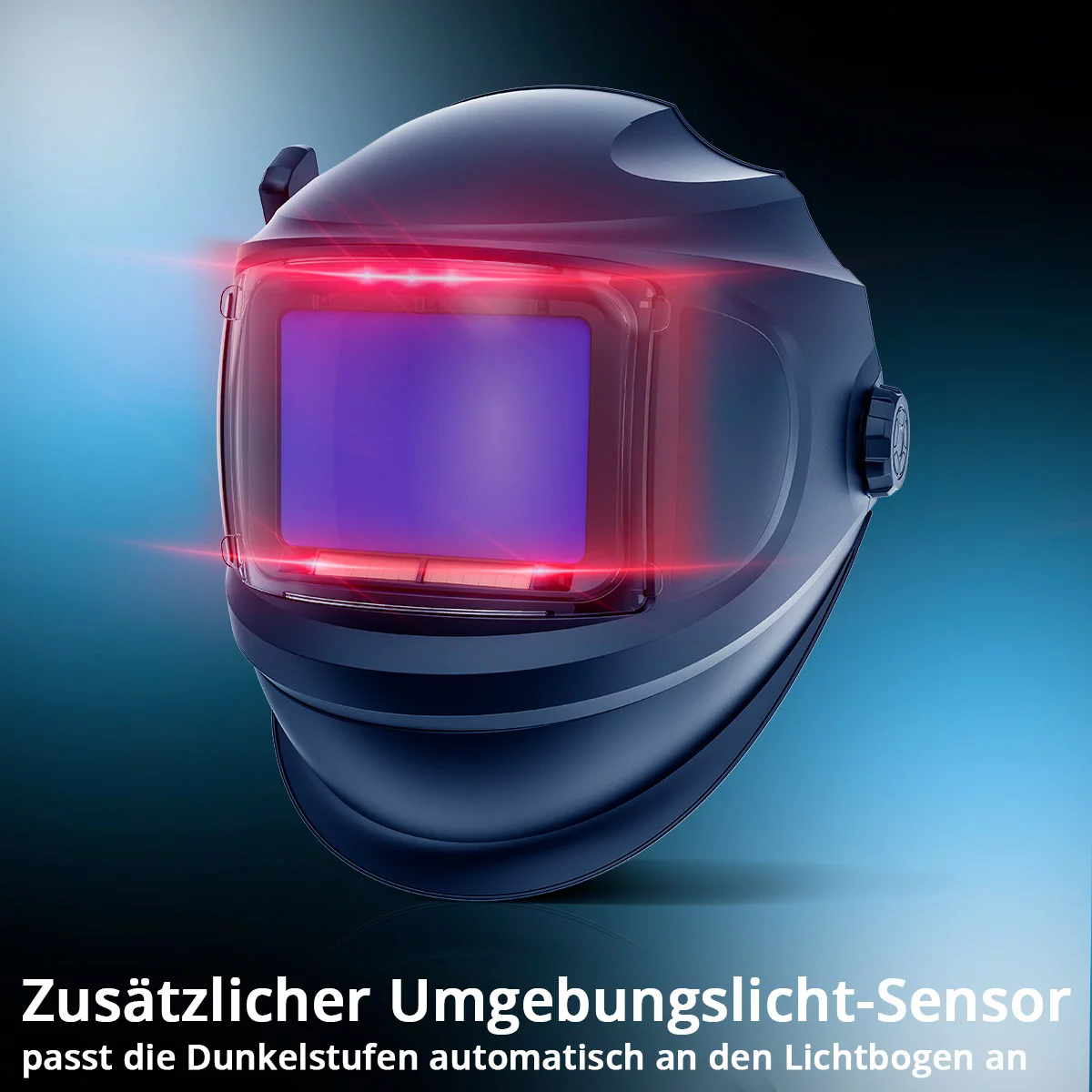

The fully automatic welding helmet also has an ambient light sensor that automatically adjusts the darkness levels to the arc.

The OLED remote control can be used to conveniently select numerous parameters (WELD / CUT / GRIND / DARK MODE) via Bluetooth with just one hand, without having to put the welding helmet down.

The remote control can be attached directly to the welding helmet using a bracket or, thanks to an integrated magnet, to the welding table or other magnetic surfaces.

DARK MODE is recommended in unusual lighting conditions when automatic dimming cannot be guaranteed due to unfavorable lighting conditions.

The various darkening levels can be set from DIN 4 to DIN 14 depending on the mode.






Features & advantages

Precise fine-tuning can be carried out using the SHADE function of the filter cassette.
The welding helmet also has an automatic sensitivity setting (SENSIVITY).
Another highlight of the professional welding helmet is the integrated job memory, which saves the set parameters for later applications.
For welding in constrained positions, the welding helmet has an innovative locking protection to prevent accidental adjustment of the darkening levels.
In addition, the light sensitivity and the delay of the darkening filter can be adjusted to the individual requirements on site.
For short welding cycles such as tack welding or spot welding, the automatic welding helmet has an additional TACK mode specially adapted to the process.

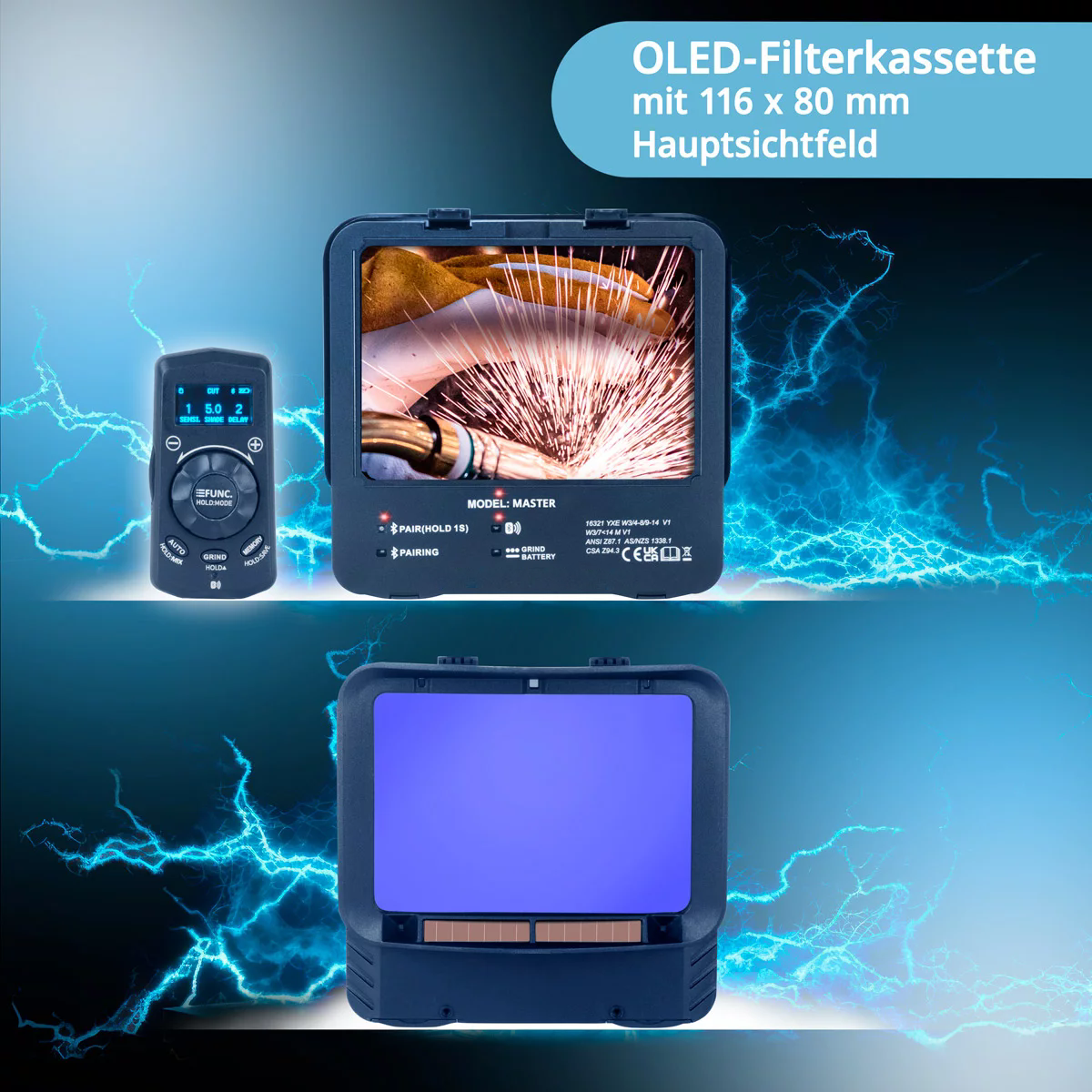

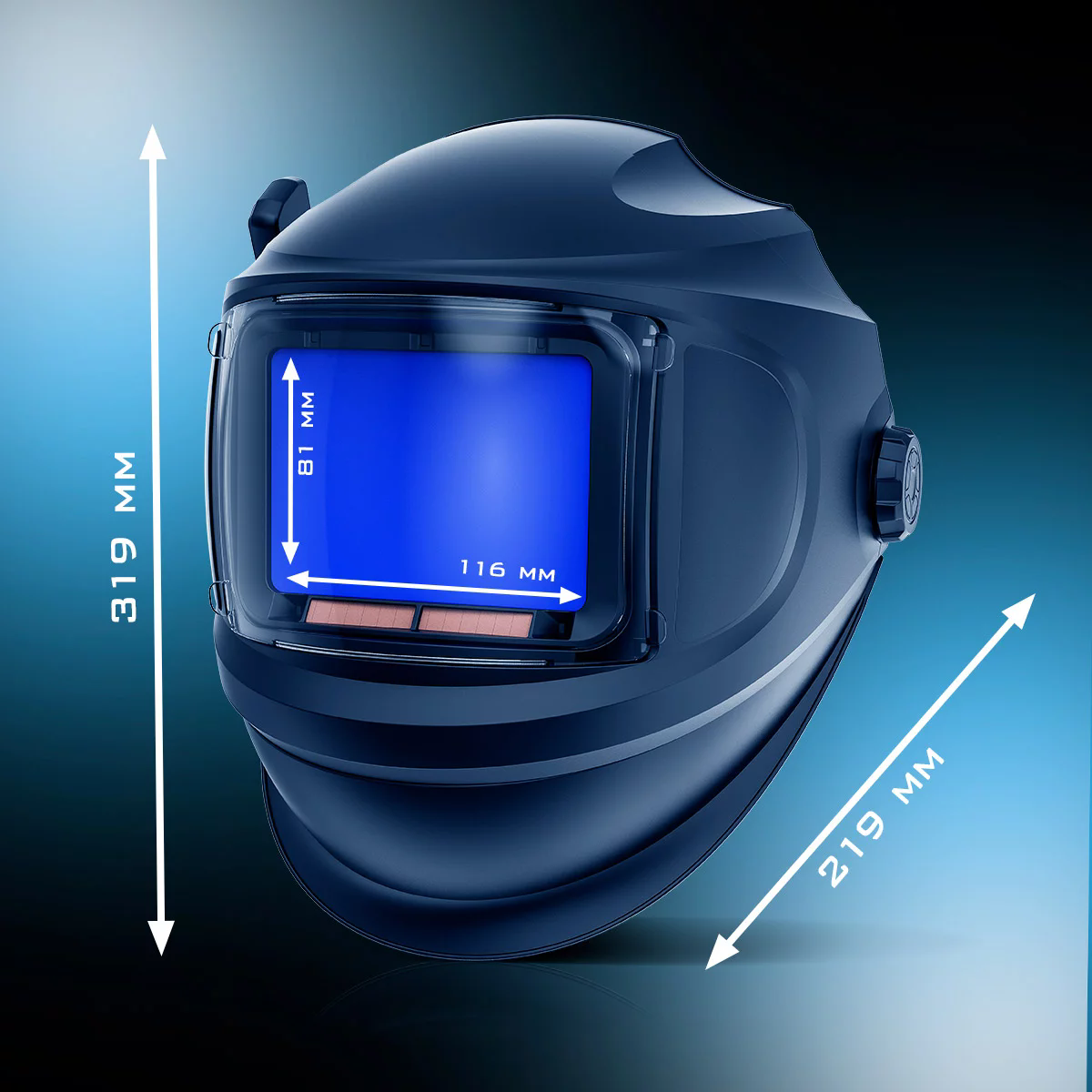

The main field of vision of the filter cassette is 116 x 81 mm, so that you have an optimum view of the work area and workpiece at all times.
The field of vision of the grinding helmet can be extended even further by using squat flaps on the visor for grinding, cutting and sawing work.
The professional welding helmet also offers sufficient space for wearing a respirator mask or goggles.
Thanks to numerous adjustment options, the welding helmets premium headband adapts perfectly to the shape of the head and offers a perfect fit.
The particularly lightweight design of the welding mask promises a high level of comfort even during long work cycles.
Designed for professional use, the fully automatic welding helmet is particularly suitable as personal protective equipment (PPE) in industry, trade and DIY.




Technical Data
Model: welding helmet MASTER
Modes: Welding / Plasma cutting / Grinding
Visibility: 116 x 81 mm
Internal control in grinding mode: Yes
Bluetooth remote control: Yes
External simple control in loop mode: Yes
External auto SHADE fine tuning: Yes
Power indicator: OLED
Optical class: 1/1/1/1
Independent arc sensors: 4
Ambient light sensors: 1
Switching time: 0.04 ms
Permanent UV/IR protection: Yes
True color technology: Yes
Darkening levels: W4-8/7<14
Darkening level deviation: +- 2,0
True color technology: Yes
Sensitivity: Yes
Delay time: Yes
Light status: W3
Status of the main window shading: W4-8 / 9-14
Dark mode: Yes
WIG rating: Advanced
Sensitivity Variable: Yes
Delay time Variable: 0.04-2.0s
Soft tone transition function (TRS): Yes
Tack weld function: Yes
Memory function: Yes
Self-test function: Yes
Replaceable battery: 2 x CR2450
Low Bat. Indicator: Yes
Operating temperature: -10C° - +55°C
Weight: 752 g
Weight remote control: 37 g

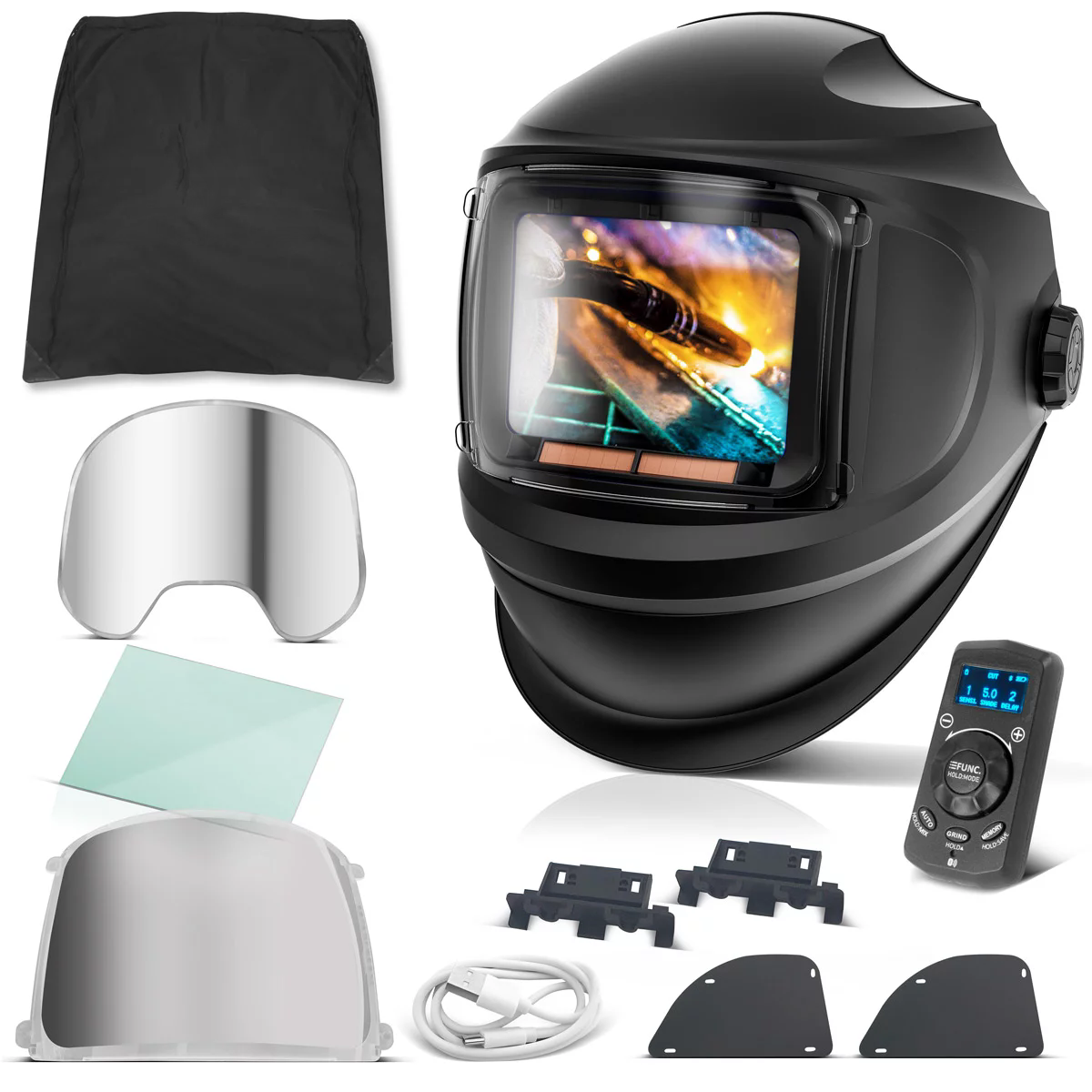

Scope of delivery

1 x MASTER welding helmet
1 x Premium headband
1 x Bluetooth remote control
1 x Storage bag
1 x Replacement protective screen (inside)
1 x Replacement welding screen (outer)
1 x replacement grinding protection screen (exterior)
2 x Plastic cover for side window
1 x USB-C charging cable
2 x diopter lens holder
